Delivering X-Ray Quality Welds for Global Fabrication, Aerospace, Pharmaceutical, and Heavy Metal Industries.
TUNGSTEN INERT GAS (TIG) / Gas Tungsten Arc Welding (GTAW) remains the absolute benchmark for precision, purity, and cosmetic weld integrity. At Paragweld (Parag Electrodes Agencies Pvt. Ltd.), we have spent over four decades perfecting inverter power source designs to supply high-reliability TIG welder machines to procurement managers, contract manufacturers, and industrial engineering firms across more than 30 countries.
Our TIG welder machine range covers capacities from 200 Amperes to 630 Amperes, featuring advanced IGBT (Insulated Gate Bipolar Transistor) inverter modules, High-Frequency (HF) touchless arc ignition, pulsed TIG parameters, and dual AC/DC switching capabilities. Whether joining thin-gauge stainless steel tubing, structural aluminium assemblies, or heavy pressure vessel components, Paragweld TIG welders guarantee thermal stability, low spatter, and superior penetration profiles.
High electrical conversion efficiency exceeding 85%, reduced power draw, dynamic arc stabilization, and lightweight compact footprint for factory floor mobility.
AC mode enables oxide cleaning for aluminium and magnesium alloys; DC mode delivers deep penetration for carbon steel, stainless, copper, and titanium alloys.
Engineered for continuous 60% to 100% duty cycles at full rated output power, supported by intelligent thermal overload protection sensors.
Complete technical range tailored to multi-scale industrial manufacturing requirements.

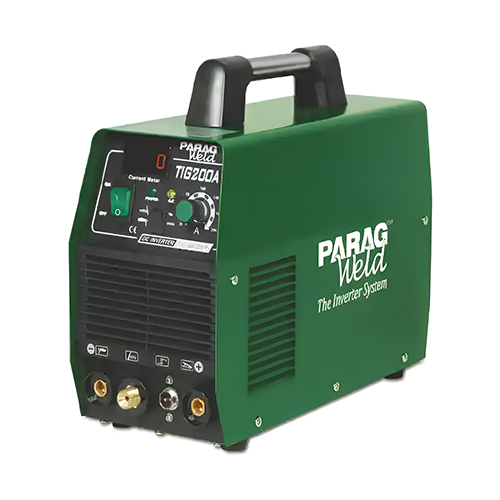

Compact, portable 200 Amp single-phase IGBT inverter TIG/MMA welding power source ideal for precision workshop maintenance, sheet metal fabrication, and site repair operations.

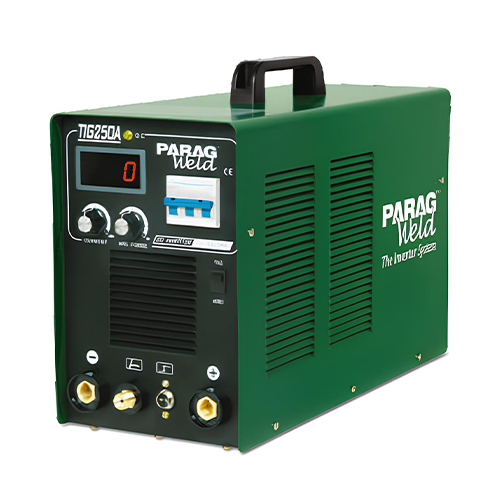

High-efficiency 250 Amp inverter TIG welding machine engineered for extended duty cycle performance in medium-duty steel fabrication, process piping, and automotive shops.

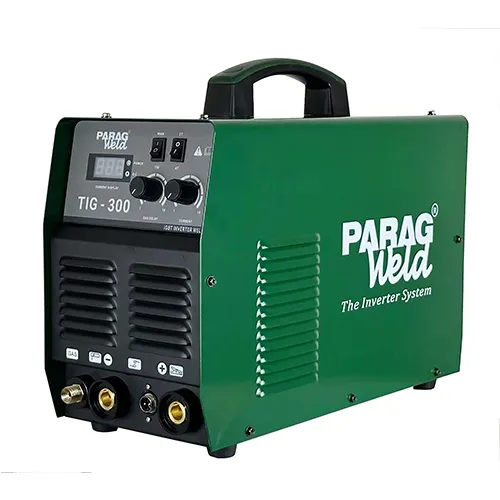

Heavy-duty 300 Amp 3-Phase IGBT inverter TIG welder featuring digital parameter display, pre/post gas flow adjustment, and superior arc stability for critical joint welding.

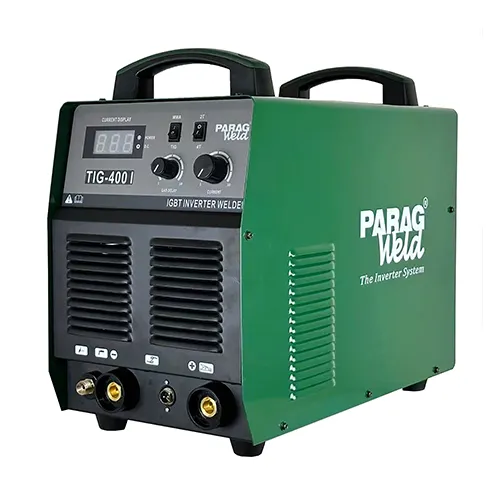

Industrial-class 400 Amp TIG welding power unit engineered to deliver high penetration rates on heavy-wall steel structures, pressure vessels, and chemical tanks.
Flagship 400 Amp modular inverter TIG welder featuring multi-microprocessor digital control system, current ramp-up/down customization, and dual TIG/MMA operation.

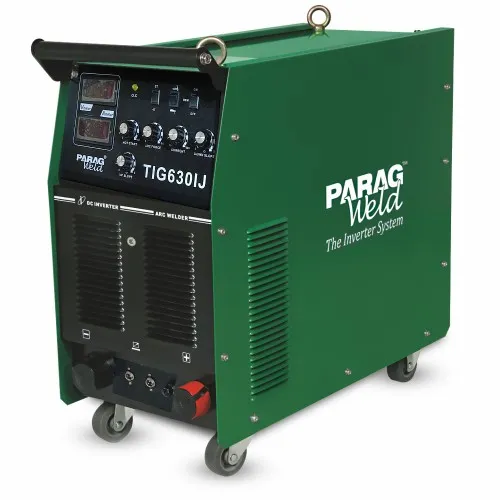

Ultra heavy-duty 630 Amp industrial TIG welding system designed for high amperage continuous duty applications, heavy plate joining, and severe shop environment operation.
Compare electrical and mechanical parameters across the Paragweld TIG machine portfolio.
| Parameter / Model | TIG 200A | TIG 250A | TIG 300 IGBT | TIG 400 IGBT | TIG 400 IJ | TIG 630 IJ |
|---|---|---|---|---|---|---|
| Rated Input Voltage (V) | AC 230V ± 15% (1P) | AC 415V ± 15% (3P) | AC 415V ± 15% (3P) | AC 415V ± 15% (3P) | AC 415V ± 15% (3P) | AC 415V ± 15% (3P) |
| Input Frequency (Hz) | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz |
| Current Range (A) | 10 – 200A | 15 – 250A | 20 – 300A | 20 – 400A | 20 – 400A | 30 – 630A |
| Rated Duty Cycle (%) | 60% | 60% | 60% | 60% | 60% / 100% | 100% |
| Arc Striking Method | HF Ignition | HF Ignition | HF Ignition | HF Ignition | HF Ignition | HF / Touch Start |
| Power Factor (cos φ) | 0.85 | 0.89 | 0.91 | 0.93 | 0.93 | 0.95 |
| Insulation Class | Class F | Class F | Class H | Class H | Class H | Class H |
| Enclosure Protection | IP21S | IP21S | IP23S | IP23S | IP23S | IP23S |
| Cooling System | Forced Air | Forced Air | Forced Air | Air / Water Ready | Water Cooled | Water Cooled |
Prevents tungsten electrode erosion and work-piece tungsten contamination by initiating the electric arc across an ionized gas gap without physical electrode contact. Essential for high-purity pharmaceutical piping, food processing equipment, and nuclear grade welds.
Allows fine-tuning of peak current, base current, pulse frequency, and pulse width. Minimizes overall heat input into heat-sensitive alloys (such as thin stainless steel sheet or titanium), preventing metal distortion, burning through, and heat-affected zone (HAZ) degradation.
Adjustable pre-flow purges atmospheric air from the torch region prior to arc strike, while post-flow protects both the cooling weld pool and the hot tungsten tip from oxidation immediately after arc termination, ensuring bright, defect-free weld beads.
On AC-capable models, operators can precisely balance oxide-cleaning action against penetration depth when welding aluminium and magnesium alloys. This breaks down stubborn oxide films while concentrating thermal energy into deep metal penetration.
Paragweld operates a rigorous Quality Assurance protocol adhering to international manufacturing directives. Every TIG welder machine undergoes stringent dielectric insulation testing, full-load temperature rise testing, and continuous burn-in trials prior to export dispatch.
Essential details for B2B importers, distributors, and EPC contractors.
We accept sample orders starting at 1 unit for evaluation. For commercial wholesale distributor orders, volume discount pricing applies to FCL and LCL shipments.
Yes, our electrical engineering team configures TIG welding machines to match specific national electricity standards, including 220V 1-phase, 380V 3-phase, 415V 3-phase, and 440V 3-phase at 50Hz or 60Hz.
For continuous TIG welding above 250 Amperes or during heavy multi-shift production, we strongly recommend integrating a Paragweld recirculating water-cooling unit to protect the TIG torch neck, cable assemblies, and internal power components from thermal fatigue.
Connect with our technical export division to receive comprehensive quotation details, proforma invoices, and customized OEM specifications within 24 hours.
