Custom-engineered resistance welding systems compliant with JIS standards, dual-frequency operation (50Hz/60Hz), and automated factory integration.

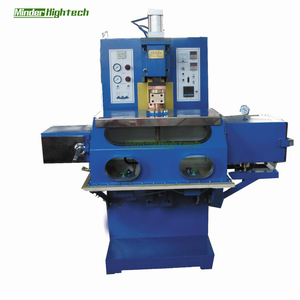

Specialized capacitor discharge & high-precision projection welding machine for TO-can hermetic sealing. Engineered for optical communication sensors, laser diodes, and semiconductor packages requiring inert gas chamber atmospheric sealing.

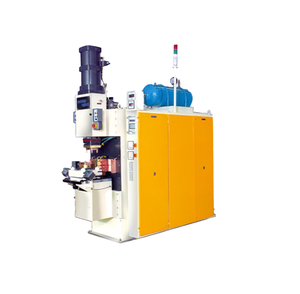

Heavy-duty direct current projection welder tailored for automotive structural sheet metal, nut welding, and hardware fasteners. Delivers ultra-fast energy release to prevent thermal distortion in high-tensile steel components.

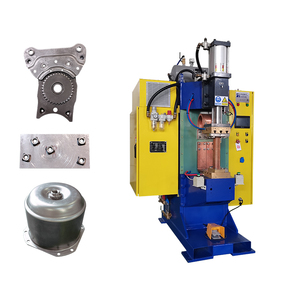

Pneumatic press-type AC resistance welder built with rigid dynamic frame geometry. Ideal for multi-projection welding, wire mesh cross-joining, and industrial stamping fabrications with micro-processor cycle timing.

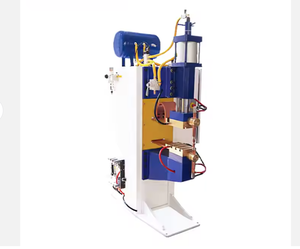

State-of-the-art medium/high-frequency inverter projection welder designed for aluminum alloy sheet joining, bearing cores, and non-ferrous metal assemblies requiring precise secondary current feedback.

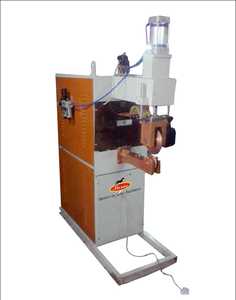

Versatile 50 KVA unit engineered for variable input voltages (200V Japanese standard compatible). Features up to 5mm+5mm thickness capacity, optimized for precision stamping shops and small-to-medium parts fabrication.

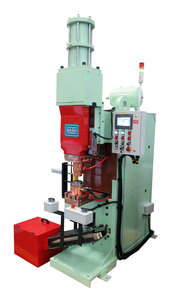

Flexible modular power architecture supporting AC, 1kHz/4kHz MFDC, and 3-Phase DC configurations. Built to meet stringent Japanese quality control guidelines for zero-defect production lines.

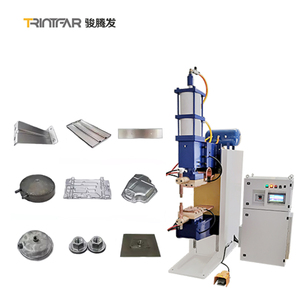

High-tonnage frame projection welding machine designed for heavy structural metal joining. Features reinforced water-cooled platens, low-impedance secondary circuit, and high clamping force stability.

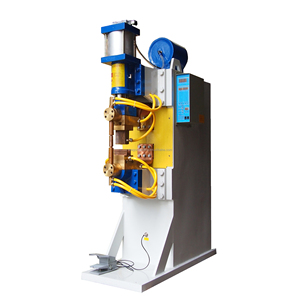

Advanced resistance welder with multi-stage current control: pre-pressing, pre-heating, main projection pulse, post-weld tempering, and upslope/downslope management to prevent micro-cracking in high-carbon steels.
Japan’s industrial sector represents the global gold standard for manufacturing precision, zero-defect quality control, and advanced material integration. From Tier-1 automotive clusters in Aichi Prefecture (Nagoya) to optoelectronics packaging hubs in Kanagawa and Shizuoka, procurement teams demand resistance projection welders that deliver uncompromising consistency, microsecond current stability, and full energy efficiency.
As a world-class welding equipment manufacturer established in 1980 (operating under Parag Electrodes Agencies Pvt. Ltd.), our engineering team brings over four decades of specialized resistance welding, forging repair, and custom automation expertise. We supply Japanese manufacturers and global subsidiaries with customized Medium Frequency Direct Current (MFDC) and pneumatic projection welding systems tailored precisely to local grid specifications, including 200V 3-phase 50Hz (Eastern Japan) and 60Hz (Western Japan) industrial power networks.
Inverter frequencies ranging from 1,000Hz to 4,000Hz enable secondary current adjustments within milliseconds, crucial for localized thermal expansion across embossing projections.
Precision-machined Class 2 Chromium Copper (CuCrZr) and Class 3 Beryllium Copper electrodes designed specifically for multi-projection weld nuts, studs, and ring projections.
Rigid low-deflection press frames engineered to maintain axial electrode alignment under high pneumatic/hydraulic squeeze forces, ensuring compliance with Japanese welding standards.
Projection welding offers significant advantages over conventional spot welding by concentrating electrical current and mechanical force at pre-formed embossed projections. This yields concentrated heat generation, minimal heat-affected zones (HAZ), extremely low surface marking, and rapid cycle rates. Within Japan's specialized industrial belts, our projection welders serve key high-value sectors:
In high-volume chassis, body-in-white (BIW), and seat frame assembly, projection welding is critical for joining weld nuts (DIN 928 / JIS B 1196) and weld studs to Ultra-High-Strength Steel (UHSS / Dual-Phase 980-1180 MPa steels). Our MFDC projection welders deliver rapid energy input, preventing excessive heat dissipation into the surrounding high-strength base metal while eliminating weld spatter on threaded fasteners.
Precision optical sensors, infrared detectors, and telecommunication laser diodes require leak-free hermetic sealing within controlled atmosphere gloveboxes. Utilizing Capacitor Discharge or Micro-Inverter projection technology, our TO (Transistor Outline) hermetic seam welders execute ring-projection welds on Kovar caps and nickel-plated headers in under 10 milliseconds, preventing internal component thermal damage.
For Japan’s home appliance, switchgear, and precision stamping manufacturers, multi-projection joining of brass, copper terminals, and silver-tin-oxide contacts requires dynamic force follow-up. Our pneumatic press welders utilize low-friction air cylinders and linear guide ram slides to guarantee instantaneous mechanical follow-up as projections collapse during the melt phase.
Under Japan’s national Green Transformation (GX) policies and carbon neutrality initiatives, manufacturing facilities across Kansai, Kanto, and Chubu are aggressively phasing out inefficient single-phase AC resistance welders. Traditional AC machines draw heavy reactive power spikes, create line unbalanced loads, and waste thermal energy over long AC cycle durations (50/60 Hz sine waves).
The industry standard in Japan has shifted overwhelmingly toward Medium Frequency Direct Current (MFDC) 1000Hz Inverter Projection Welding. The key technological differentiators and performance upgrades include:
| Performance Metrics | Single-Phase AC Welder | 3-Phase DC Welder | 1kHz - 4kHz MFDC Inverter Welder |
|---|---|---|---|
| Primary Power Supply Impact | High peak, single-phase unbalance | Balanced 3-phase, high power factor | Balanced 3-phase, Power Factor > 0.95 |
| Energy Consumption Reduction | Baseline (High KVA demand) | ~20% to 25% Reduction | 30% to 50% Energy Reduction |
| Current Control Speed | Slow (Every 10ms @ 50Hz) | Moderate (Phase shift timing) | Ultra-Fast (Every 0.25ms to 1ms) |
| Heat-Affected Zone (HAZ) | Large (Risk of component thermal stress) | Moderate | Extremely Narrow (Preserves metallurgical temper) |
| Electrode Wear & Dressing Cycle | Frequent replacement (High heat build-up) | Moderate life extension | Up to 3x-5x Longer Electrode Service Life |
| Spatter & Weld Quality (JIS Z 3140) | High risk of metal expulsion | Reduced spatter | Zero-Spatter, High-Nugget Integrity |
By transforming AC power to high-frequency DC, MFDC welders continuous current delivery ensures uniform heat dissipation across all projection points simultaneously. In multi-projection setups (e.g., 4-projection embossed bracket joining), MFDC eliminates cold welds and localized expulsion, resulting in 100% nugget formation consistency.
Technical guidance regarding Japanese power compliance, JIS quality validation, electrode maintenance, and custom automation support.
For over 44 years, our company has stood as a vanguard of industrial manufacturing innovation. Operating from our advanced production facilities in GIDC Vatva, Ahmedabad, India, we maintain end-to-end design, machining, transformer winding, and quality testing capabilities.
We design and wind our own water-cooled resistance welding transformers using high-permeability silicon steel cores and Class H epoxy insulation, providing extraordinary thermal overload resistance.
Every unit undergoes continuous full-load thermal testing, ultrasonic non-destructive nugget inspection, and high-voltage insulation tests prior to international export packaging.
Whether you require custom throat depths, dual-stage pneumatic force cylinders, or integrated indexing turntables, our CAD/CAM design department builds to your precise drawings.
Speak directly with our senior welding engineers. Send us your component engineering drawings, metal material specifications, projection geometries, and production volume target for a free technical analysis and quotation.
