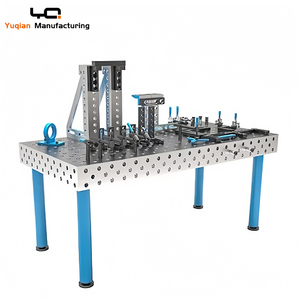

Explore our flagship high-precision D16 and D28 modular welding platforms, hydraulic scissor lifters, and flexible soldering stations designed for rigorous industrial productivity.
Modern metal fabrication, structural steel construction, and automated robotic welding demand absolute precision. Traditional rigid welding jigs—custom built from structural steel angles and channels—are inherently inflexible, costly to retool, and susceptible to thermal warpage over repeated thermal cycles. As a leading manufacturer and exporter of 3D modular welding tables, Paragweld (Parag Electrodes Agencies Pvt. Ltd.) engineered high-density gray cast iron (HT300) and plasma-nitrided alloy steel fixture plates to establish a benchmark for dimensional stability, anti-spatter longevity, and modular flexibility.
Choosing the correct table top material depends on thermal exposure, mechanical impact, and weld spatter exposure. Our engineering team conducts comparative metallurgical testing to provide industrial buyers with optimal material specifications:
| Engineering Parameter | HT300 Gray Cast Iron (Spec Grade) | Plasma Nitrided Q345 / S355 Carbon Steel |
|---|---|---|
| Tensile Strength (MPa) | 300 – 350 MPa | 520 – 650 MPa |
| Vickers Surface Hardness | HV 180 – 240 | HV 550 – 750 (Deep Nitride Layer) |
| Thermal Expansion Coeff. | 10.5 × 10-6 / K (High Stability) | 12.0 × 10-6 / K |
| Weld Spatter Adhesion | Low (Natural Graphite Lubricity) | Extremely Low (Repels molten droplets) |
| Damping Capacity | Exceptional (Absorbs shop vibration) | Moderate Damping |
| Recommended Industry | Heavy Machinery, Cast Repair, Frameworks | Robotic Cells, Sheet Metal, High Volume OEM |
HT300 Gray Cast Iron possesses flake graphite microstructure that absorbs thermal energy rapidly without localized warping, making it ideal for high-amperage Submerged Arc Welding (SAW) and Heavy MIG welding applications. Conversely, Plasma-Nitrided Carbon Steel tables feature a thermo-chemically hardened diffusion layer up to 0.8mm deep, rendering the surface impervious to rust, scratching, and adhesion of spatter droplets generated by high-wire-speed GMAW processes.
Established in 1980 in the GIDC Vatva industrial hub of Ahmedabad, India, Parag Electrodes Agencies Pvt. Ltd. delivers four decades of manufacturing authority to overseas procurement teams.
Our 5-axis CNC machining centers finish table surfaces in a single setup, guaranteeing pitch distance tolerances of 100mm ± 0.03mm and overall plane flatness within ≤0.05mm/m².
Operating continuously since 1980, we integrate deep metallurgy, welding machine design, and fixturing tooling into an all-in-one ecosystem for international B2B buyers.
Bottom grid structures feature deep cross-rib reinforcement. All four side walls (200mm depth) include precision bored holes for seamless multi-table interlocking expansions.
Export packaging features VCI anti-corrosion barrier film, heavy-duty fumigated solid wooden cases, and custom steel skid framing engineered for safe ocean transport.
The global metal fabrication landscape is transitioning rapidly toward semi-automated cobots (collaborative robots) and unified smart factory standards. Sourcing specialists must align capital expenditure with future-proof modular fixturing hardware.
Modern B2B buyers are categorizing facility tooling into two distinct hole-system standardizations:

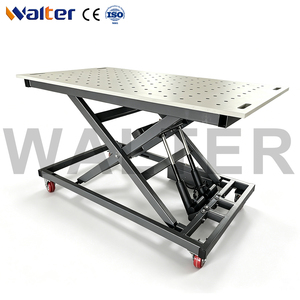

Ergonomics directly correlates with shop-floor deposition speed. Static-height welding workbenches force operators into fatigue-inducing positions when working on tall assemblies. The integration of Heavy-Duty Hydraulic Scissor Lifters allows plant operators to adjust working heights dynamically from 350mm up to 1200mm while maintaining high static load ratings (up to 5,000 kg), reducing rework caused by restricted welder visibility.
Expert answers to common engineering, sourcing, and operational queries from B2B procurement managers and plant directors.

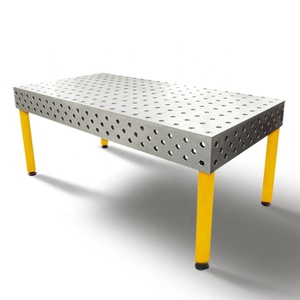

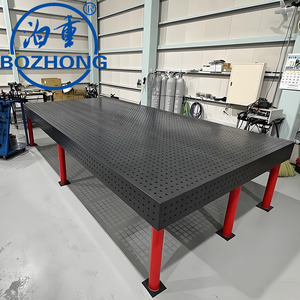

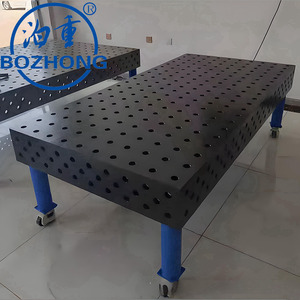

The fundamental differences lie in hole diameter, grid spacing, material thickness, and payload capacity. D16 systems feature 16mm bore holes spaced on a 50mm x 50mm grid, utilizing 14mm-16mm plate thickness—ideal for precise, lighter fabrication. D28 systems use 28mm bore holes on a 100mm x 100mm grid with 23mm-25mm plate thickness, designed for heavy structural steelwork, high clamping pressure, and massive machinery frames.
HT300 Grey Cast Iron exhibits superior vibration damping, lower coefficient of thermal expansion, and natural lubricity from internal flake graphite. This prevents severe heat warping under intense thermal loads during high-current MIG or ARC welding, ensuring long-term flatness stability compared to un-nitrided structural steel.
Plasma Nitriding is a thermo-chemical treatment that diffuses nitrogen into the metal surface, raising surface hardness up to HV750 (Vickers). This ultra-hard layer lowers surface energy, preventing molten metal droplets (spatter) from fusing to the table. Spatter can simply be wiped or brushed off without requiring grinding wheels that ruin surface flatness.
Paragweld hydraulic scissor lifter 3D welding tables are engineered for heavy-duty industrial service, supporting dynamic load capacities from 2,000 kg up to 5,000 kg depending on cylinder configuration, while maintaining strict flatness tolerances across the elevated working surface.
Yes. All Paragweld 3D welding tables feature precision CNC-machined side walls (200mm depth) equipped with identical D16 or D28 grid holes. Tables can be seamlessly linked together using rapid-connecting bolts to create custom work surfaces extending to 10 meters or longer.
To prevent maritime salt-spray corrosion and mechanical shock, all export tables undergo multi-stage rust preventative oil coating, sealed VCI (Vapor Corrosion Inhibitor) plastic wrapping, corner edge protectors, and solid fumigated wooden boxes with reinforced steel framing.
We offer full custom engineering services including specialized grid patterns, custom mounting points for robotic welding positioners, heavy double-plate ribbing, stainless steel surface inserts, and bespoke scissor lift travel ranges tailored to your production facility requirements.
Simply click the "Send an Inquiry" button anywhere on this page to open our direct inquiry communication window. Our technical sales engineers will evaluate your project drawings, recommend optimal table dimensions and tool kit configurations, and issue a competitive FOB/CIF quotation.
