Explore our high-efficiency fiber laser welders, air-cooled portable units, and multi-functional 4-in-1 systems engineered for high penetration, zero distortion, and maximum throughput.
The global metal fabrication landscape is experiencing a structural paradigm shift from traditional electric arc techniques (TIG/MIG) toward high-density fiber laser processing. As a leading China laser welder factory and exporter, our engineering foundations are built upon over 44 years of industrial machine manufacturing expertise—spanning heavy fabrication, forging, casting, and precision machine shop systems.
Industrial laser welding utilizes a coherent monochromatic light beam concentrated to power densities exceeding $10^6 \text{ W/cm}^2$. This creates a keyhole effect where the metal vaporizes under intense thermal energy, allowing deep weld penetration with minimal heat input. Compared to conventional fusion processes, fiber laser welding decreases post-weld grinding labor by up to 80% and reduces heat-induced component distortion to near-zero tolerances.
Every laser welding unit originating from our facility undergoes 72 hours of continuous full-load optical power stability testing, optical beam parameter product ($M^2$) validation, and high-voltage insulation checks under ISO 9001:2015 quality management standards. All exported equipment carries CE, FDA, and RoHS compliance certificates.
Equipped with premium fiber optical cables ($BPP \le 4 \text{ mm}\cdot\text{mrad}$) and wobble laser heads, ensuring smooth bead formation even when bridging wide root gaps up to 2.5mm.
Advanced semiconductor diode laser modules achieve wall-plug conversion efficiencies above 38%, cutting electricity consumption by 60% compared to traditional YAG lasers.
Dedicated export infrastructure delivering fast sea and air freight to over 30 countries with full multi-language technical documentation, remote calibration, and spare parts support.
As industrial smart manufacturing accelerates under Industry 4.0 standards, B2B procurement decisions for metal joining equipment are evolving rapidly. Buyers must evaluate not only immediate capital expenditure (CapEx) but also long-term operational efficiency (OpEx), labor availability, and energy metrics.
Key Technological Trends Driving the 2026-2030 Procurement Cycle:
| Performance Metric | Handheld Fiber Laser (1500W) | Traditional TIG Welding | MIG / GMAW Welding |
|---|---|---|---|
| Welding Speed (1.5mm Stainless) | up to 35 - 60 mm/s (5-10x Faster) | 3 - 6 mm/s | 8 - 14 mm/s |
| Heat Affected Zone (HAZ) | Ultra-narrow (<0.5mm) | Wide (3.0 - 6.0mm) | Moderate (2.0 - 4.0mm) |
| Thermal Distortion | Negligible / Zero Calibration | High (Requires Straightening) | Moderate to High |
| Operator Skill Requirement | Low (Trainable in 2 Hours) | Very High (Certified Welder) | Moderate |
| Consumable Costs | Low (Protective Lenses & Nozzles) | High (Tungsten & Gas Flow) | High (Spatter & Wire Consumables) |
| Post-Weld Processing | None / Light Wipe | Heavy Grinding & Pickling | Slag Removal & Polishing |
When sourcing industrial laser welding machinery from China manufacturers, enterprise buyers must look beyond headline wattage ratings. Evaluating optical component provenance, laser head cooling design, and control software stability is critical for long-term production reliability.
Ensure the factory utilizes certified fiber sources (Raycus, MAX, IPG, or JPT) featuring internal optical back-reflection isolation to protect diodes when welding copper or brass.
Dual-axis wobble heads allow customizable motor patterns (circle, ellipse, line, triangle) to bridge fit-up gaps up to 2.5mm without blowing through thin metal stock.
Verify whether your duty cycle requires continuous water chiller circulation or lightweight phase-change air cooling based on ambient factory temperature parameters.
Direct technical and commercial answers for purchasing managers, process engineers, and global importers.
A 1500W fiber laser achieves single-sided full penetration welds on stainless steel and carbon steel up to 4.5mm (single pass). A 3000W laser extends penetration up to 8mm on steel, and up to 5mm-6mm on reflective aluminum alloys using auto wire feeding.

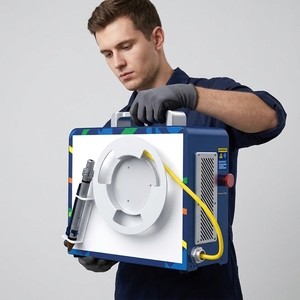

Water-cooled machines use an integrated dual-temp chiller to maintain precise laser diode temperatures, suited for continuous 24/7 heavy industrial shifts. Air-cooled units eliminate the water reservoir, reducing machine footprint and total weight (down to 12kg-40kg), making them ideal for field installation and light-to-medium duty cycles.

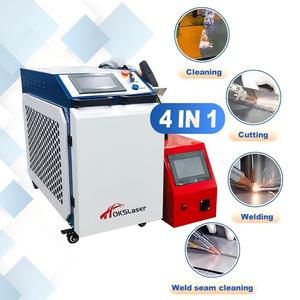

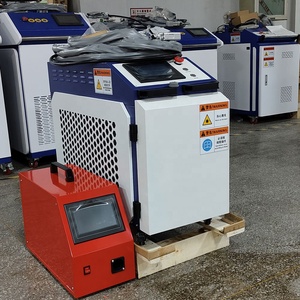

The 4-in-1 optic head incorporates quick-change focus nozzles and protective lens cartridges. By selecting preset modes on the touch screen interface and switching nozzles, the machine transitions between laser welding, seam rust/paint cleaning, metal cutting, and post-weld bead cleaning.
1000W and 1500W units typically operate on standard single-phase 220V ±10% 50/60Hz AC power. 2000W, 3000W, and 6000W heavy industrial systems require 3-phase 380V/415V industrial power supplies for phase load balance.
Industrial Argon (99.99% purity) or Nitrogen (99.99%) is recommended. Argon provides optimal molten pool shielding for titanium and carbon steel. Nitrogen is cost-effective for stainless steel, enhancing surface hardness and finish while preventing oxidation.
Main consumables include copper welding nozzles (replace every 100-200 hours depending on spatter) and quartz protective cover lenses (replace every 80-160 hours). Both components are quick-swap and low-cost ($2-$5 per piece).
All machines are sealed in anti-static moisture-barrier film and packed inside ISPM-15 compliant fumigation-free reinforced wooden crates. We provide CIF, FOB, DDP, and DDU export shipping options with customs documentation pre-cleared.
We provide a comprehensive 2-year warranty on the fiber laser source engine and 1-year coverage on electronic components. Our engineering support includes 24/7 video diagnostics, lifetime free software updates, and rapid spare parts dispatch within 48 hours.
Providing flexible manufacturing solutions for global distributors, machinery brand owners, and high-volume metal fabrication enterprises.
Custom cabinet paint colors, logo silk-screening, custom UI language translation, and bespoke outer shell designs to match your regional brand identity.
Bespoke fiber optic cable lengths (up to 15m), custom wire feeder configurations, and specialized automation interface protocols (CanOpen, Modbus, Ethernet/IP).
Complete traceability on every component, optical power meter verification logs provided with every shipment, and live pre-shipment video inspection.
Contact our application engineering team today for custom sample testing, detailed technical datasheets, factory-direct wholesale price lists, and global shipping estimates.
