In modern heavy industrial manufacturing—spanning shipbuilding, structural steel fabrication, automotive assembly, and nuclear pressure vessel construction—the personal protective equipment (PPE) selection directly impacts both operational efficiency and long-term workforce health. Welding masks and auto-darkening helmets (ADHDs) are no longer simple protective plastic shells; they have evolved into complex optoelectronic electro-mechanical systems.
This procurement whitepaper synthesizes technical audit data from top-tier global welding mask factories, establishing a clear evaluation framework for B2B procurement managers, safety engineers, and OEM distributors. When evaluating a top welding mask factory, buying teams must look beyond superficial unit pricing and analyze underlying optical cassette manufacturing, liquid crystal quality, SMT circuit board stability, polycarbonate shell impact rating, and ergonomics.
To ensure total physical compliance and protection against infrared (IR) and ultraviolet (UV) radiation up to DIN 16 shade levels, factories must adhere to rigorous quality management protocols. Below is a comparative technical matrix detailing standard commercial helmets versus heavy industrial-grade automatic masks:
| Evaluation Parameter | Commercial Grade (Standard OEM) | Heavy Industrial / Professional Grade | Testing Standard / Compliance Method |
|---|---|---|---|
| Optical Class Rating | 1/2/1/2 or 1/1/1/2 | 1/1/1/1 Optical HD Clarity | EN 379 Clause 4.3.2 |
| ADF Switching Time | 1/10,000 sec to 1/15,000 sec | 1/25,000 sec (0.00004s) Ultra-fast | High-Speed Photodiode Oscillation Test |
| Viewing Area Dimension | 92 x 42 mm (Standard) | 100 x 93 mm / Panoramic 180° Visor | Effective Vision Geometry Audit |
| TIG Arc Current Rating | ≥ 20 Amps DC | ≥ 2 Amps DC / AC Low-Amp TIG | Low-Amp Arc Detection Threshold Test |
| Shell Impact Resistance | Basic High-Impact Nylon/PP | High-Temp Flame Retardant PC/PA | ANSI Z87.1 High-Velocity Impact (45m/s) |
| Dielectric Protection | Unrated / Basic Insulation | Up to 5000V Dielectric Resistance | ASTM F2178 Arc Flash Voltage Testing |
When auditing potential OEM/ODM welding mask suppliers or contract factories, enterprise sourcing teams must conduct deep-dive technical evaluations based on the following 10 mandatory capability pillars:
Class 10,000 dust-free cleanroom environments for liquid crystal cell assembly, preventing micro-particulate defects on liquid crystal layers.
Precision CNC mold tooling and injection moulding capabilities to produce custom ergonomic shells with consistent wall thickness.
Proprietary spectral tuning technology that allows true green-free color vision, enhancing puddle clarity and joint visibility.
Automated Surface Mount Technology lines for arc-sensor circuit boards, guaranteeing extreme vibration and moisture resistance.
Multi-channel independent sensor arrays (up to 4 optical sensors) eliminating blind spots during pipe welding or positional work.
High-impact outer shield lens testing resistant to molten metal spatter, extreme temperatures (-10°C to +65°C), and abrasion.
5-point adjustable pivot harness design providing dynamic weight distribution, eliminating pressure points on the occipital bone.
Powered Air-Purifying Respirator (PAPR) compatibility with TH3/HEPA filtration modules for heavy fume, manganese, and stainless steel welding.
Dual power systems utilizing solar cells alongside replaceable CR2450 lithium batteries with auto-sleep circuitry for extended operational lifecycle.
The global industrial welding protection ecosystem is experiencing a shift driven by automation, digital health monitoring, and advanced composite materials. B2B buyers looking to maintain long-term competitive advantages should align their procurement strategies with these core emerging trends:
Next-generation welding helmets are embedding Heads-Up Displays (HUD) directly onto the auto-darkening lens. These systems display real-time voltage, wire feed speed, and thermal telemetry fed via Bluetooth from smart welding power sources, reducing the need for operators to lift their helmets between passes.
To reduce cervical spine strain, factories are transitioning from conventional Polypropylene (PP) to high-flex polyamide and ultra-lightweight carbon fiber composite shells. Weights are decreasing from >600g to under 420g without sacrificing ANSI impact structural integrity.
Stricter OSHA and EU environmental health standards regarding hexavalent chromium and manganese fume exposure are driving mass adoption of PAPR-integrated helmets. Airflow systems with TH3 filtration efficiency (99.97% particle removal) are quickly becoming standard procurement requirements for shipyards and heavy fabrication plants.
Advanced sensor arrays now dynamically scan the arc spectrum to instantly select the optimal DIN shade level (Shade 4-14 auto-adjust) without manual dial interaction, guaranteeing ideal vision contrast whether working on light TIG tacking or 500A Submerged Arc gouging.
Partnering with an established industrial welding equipment and protective gear manufacturer provides critical supply chain stability, technical customization, and compliance guarantees. Drawing from decades of industrial engineering experience, our manufacturing ecosystem delivers unmatched B2B advantages:
Established in 1980, bringing over four decades of metallurgical, electrical, and optical protection engineering expertise to global industrial buyers.

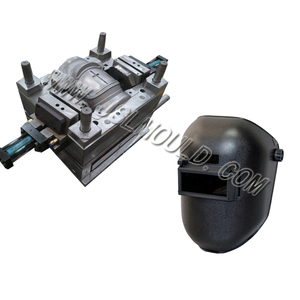

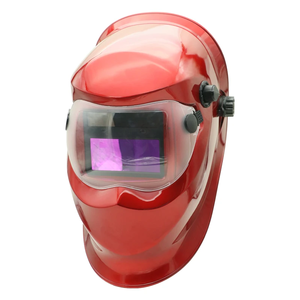

From custom plastic injection mold design (flip-up visors, non-slotted V-types) to branded shell graphic printing and private-label packaging.
100% of auto-darkening filters undergo automated optical bench testing for switching speed, shade uniformity, and solar cell current output prior to shipment.
Products engineered to strictly fulfill CE, EN 175, EN 379, ANSI Z87.1, and ISO 9001:2015 global industrial safety standards.
Scaled production lines delivering consistent lead times for large-scale enterprise tenders, regional distribution networks, and specialized OEM runs.
One-stop industrial sourcing across industrial MIG, TIG, ARC welders, air plasma cutters, specialized electrodes, and high-performance safety masks.
Technical answers to common procurement questions raised by industrial buyers, safety officers, and distributors:
The 1/1/1/1 rating represents the highest grade under EN 379 standards across four optical tests: 1) Optical Class (distortion-free image), 2) Diffusion of Light (no blurriness), 3) Luminous Transmittance Variation (consistent shade shade uniformity), and 4) Angular Dependence (clear vision at steep angles).
Switching speed (e.g., 1/25,000s) determines how quickly the liquid crystal display shifts from light shade (DIN 3/4) to dark shade (DIN 9-13) when the arc strikes. Faster response times prevent micro-flash exposure, eliminating welder eye strain and long-term flash burn risk.
Yes. Full-service factories provide custom plastic injection mold design and tooling services for flip-lens structures, non-slotted hard-hat integrated masks, customized ventilation slots, and unique shell shapes optimized for specific working environments.
Dielectric-rated masks use specialized silicone-coated or high-grade polycarbonate materials to insulate the operator's face against high-voltage electrical arcs and dielectric flashovers up to 5000V, vital for high-risk industrial electrical maintenance and utility welding.
Procurement teams must demand valid CE certificates (EN 175 / EN 379), ANSI Z87.1 high-impact compliance reports, ISO 9001 quality management certificates, and RoHS/REACH compliance documentation for electronic componentry.
Low-amp TIG welding produces a faint optical arc signature. High-grade masks feature sensitive infrared arc sensors capable of detecting arcs down to 2A DC or lower, preventing the lens from un-darkening while welding stainless steel or thin aluminum.
An industrial-grade ADF cassette powered by a solar-battery hybrid circuit generally lasts 3 to 5 years under daily heavy production use, provided outer protective cover lenses are periodically replaced when spatter accumulates.
PAPR (Powered Air-Purifying Respirator) systems deliver positive filtered air into the helmet enclosure, protecting welders from toxic fumes, manganese, hexavalent chromium, and particulates common in heavy structural steel and stainless steel fabrication.
